Treatment Areas
Cover all standard zones matched to three fiber sizes:
Face, Jawline, Neck, Upper Arms, Abdomen, Waist & Flanks, Thighs, Knees
Choosing the Right Fiber Size for Different Treatment Areas
This exclusive fiber matching guide is unique to our multi-fiber platform, helping operators standardize clinical parameter selection:
| Treatment Area | Recommended Fiber Diameter | Core Clinical Advantage |
| Jawline & Double Chin | 400μm | Fine energy distribution for shallow facial fat, no uneven indentation risk |
| Full Neck & Inner Arms | 400μm – 600μm | Balanced precision & efficiency for medium-thickness soft tissue |
| Waist, Flanks & Knees | 600μm | Moderate energy density to speed up medium body contour sessions |
| Abdomen & Full Thighs | 800μm | High energy throughput, drastically shorten large-area treatment time |
Technology Comparison
Fiber Function Comparison
400μm: Face, Jawline, Double Chin, Thin Neck Fat
600μm: Neck, Inner Arms, Waist, Knees
800μm: Abdomen, Full Thighs, Large Flank Fat Pads

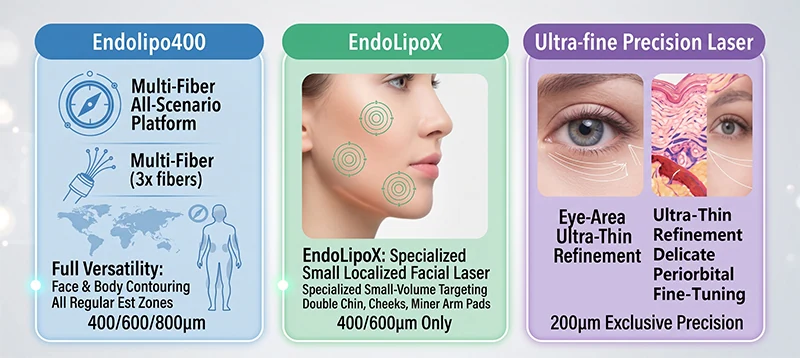

Product Series Differentiation
Treatment Procedure
Clinical Assessment & Fiber Selection
Evaluate fat thickness of target area, select matched fiber diameter from 400/600/800μm options
Pre-Topical Anesthetic Application
Minimize subcutaneous fiber insertion discomfort for patients
Multi-Fiber Laser Contouring Operation
Insert disposable fiber under fat layer, deliver calibrated dual-wavelength energy to liquefy targeted fat deposits
Post-Procedure Soothing Care
Cold compress to ease temporary mild redness and slight swelling
Long-Term Contour Maintenance Advice
Primary treatment plus booster session every 6–12 months for sustained shaping results; optimal fat reduction effect peaks within 3 months as liquefied fat metabolizes naturally
Technical Specifications
| Parameter | Full Details |

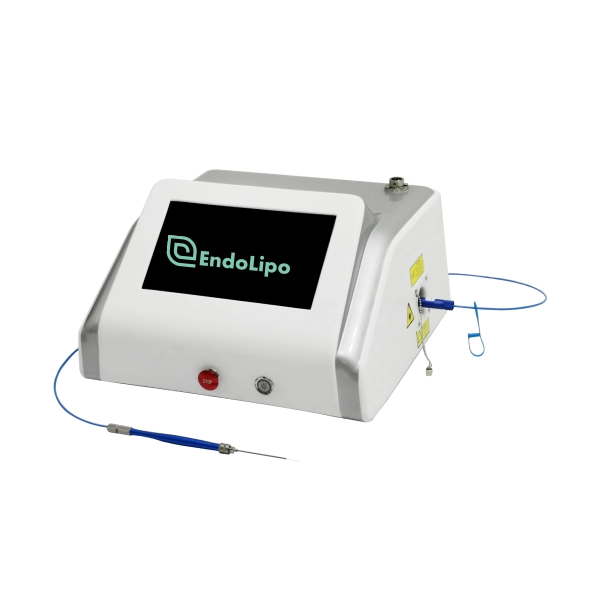

| Official Model | Endolipo400 (3rd Gen Multi-Fiber Endolift Laser) |
| Supported Wavelengths | Optional standalone 980nm, standalone 1470nm, or dual 980+1470nm configuration |

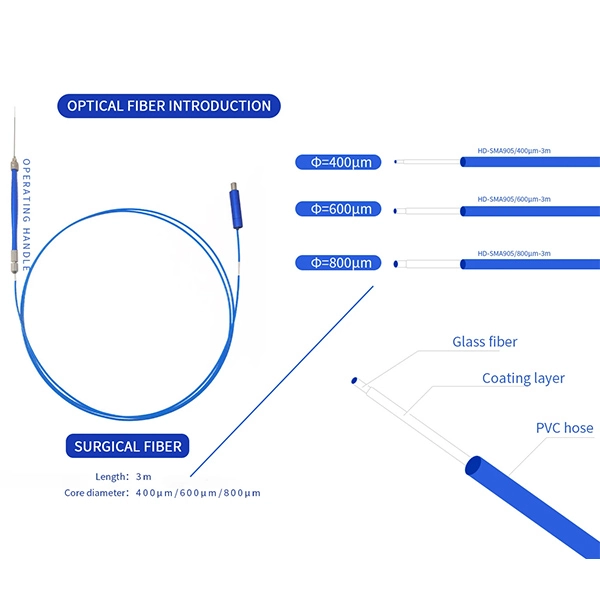

| Compatible Optical Fibers | Disposable German blue 400μm / 600μm / 800μm medical fibers |
| Adjustable Power Modules | Multiple customizable power combinations for different clinical budgets |
| Operation Modes | Continuous Wave / Pulsed / Single Pulse |
| Power Adjustment Step | Ultra-fine 0.1W incremental regulation |
| Cooling System | Air + TEC semiconductor dual cooling for all-day continuous operation |
| Net Machine Weight | 4.5kg compact clinic design |
| Laser Core Service Lifespan | ≥2000 hours under standard clean clinical environment |
| Core Platform Feature | Interchangeable multi-fiber interface for full face & body contour procedures |
Training & Certifications
Custom multi-fiber full-body lipolysis training packages for Endolipo40 distributors & large clinics. Training covers fiber selection for abdomen, thigh & large fat zones with hands-on operation guidance. CPD completion certificates included after assessment. Complete CE, FDA, ISO certification paperwork supplied together with equipment.
View complete professional training system: https://www.drebodylaser.com/endolift-training/
Before and After
FAQs
Q: Which fiber size should I pick for different treatment areas?
A: 400μm is ideal for jawline, double chin and thin neck fat; 600μm suits neck, arms and knees; 800μm delivers efficient treatment for abdomen and thick thigh fat, refer to our exclusive fiber matching table for standardized clinical choices.
Q: Can this single machine perform both facial and body contour treatments?
A: Yes, Endolipo400 is built as a full multi-fiber platform. Simply swap the matched 400/600/800μm fiber to switch between delicate facial refinement and large-area body sculpting without changing equipment.
Q: Does fiber diameter affect treatment efficiency and patient comfort?
A: Definitely. Smaller fibers provide gentle precision for shallow facial tissue; larger fibers speed up body fat treatment with higher energy throughput, balancing clinical efficiency and patient safety for each zone.
Q: Can clinics upgrade power or fiber bundles later after purchase?
A: Yes, we support follow-up fiber bundle supplementary orders and power module upgrade solutions for existing Endolipo400 machine owners.
Q: What laser wavelength configurations are available for this multi-fiber platform?
A: Customers can choose standalone 980nm, standalone 1470nm, or dual 980nm+1470nm combined power modules according to clinic service focus and budget.

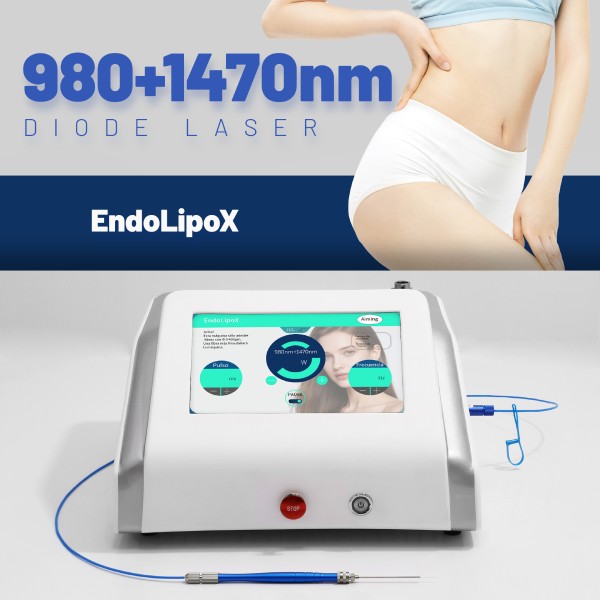

Q: What is the core difference between Endolipo400 and EndoLipoX?
A: Endolipo400 is a full multi-fiber platform compatible with 400/600/800μm fibers for all facial and large body contour cases. EndoLipoX only supports medium-size fibers and is limited to small localized facial fat treatments without large-area body sculpting capacity.
