How It Works
The 10600nm CO2 laser is strongly absorbed by water in the skin. In fractional mode, the laser beam is divided into multiple microscopic beams to create controlled microthermal treatment zones in the targeted skin area, while surrounding tissue remains untreated.
These controlled treatment zones stimulate the skin’s natural healing process and support collagen remodeling and skin renewal. This helps improve skin texture, fine lines, scars, pigmentation, and overall skin appearance.
Technical
4 Treatment Modes
The LumaFraxel X offers four treatment modes: Fractional Mode, Pulse Mode, Intimate Mode, and Eye Mode. It can be used for selected vaginal and vulval applications. Key treatment parameters, including power, pulse duration, pulse interval, scanning mode, and repetition rate, can be adjusted according to the treatment area and application.
Multiple Scan Shapes
The scanning system supports circle, ellipse, triangle, rectangle, square, hexagon, straight line, and custom shapes. Different scan shapes can be selected according to the treatment area and application requirements.
Adjustable Spot Size
The LumaFraxel X provides an adjustable spot size from 100μm to 2000μm, allowing precise treatment across different areas. Treatment parameters can be adjusted according to the treatment area, skin condition, and treatment requirements, providing flexibility for both delicate areas and larger treatment areas.
Multiple Scanning Modes
The LumaFraxel X supports multiple scanning modes, including Sequential, Center, and Random. Practitioners can select the appropriate scanning mode according to the treatment area and treatment requirements.
10.4-Inch Touch LCD Screen
The LumaFraxel X features a 10.4-inch touch LCD screen with a clear and intuitive interface. Treatment parameters can be adjusted directly on the screen, while different treatment modes and settings can be selected easily.

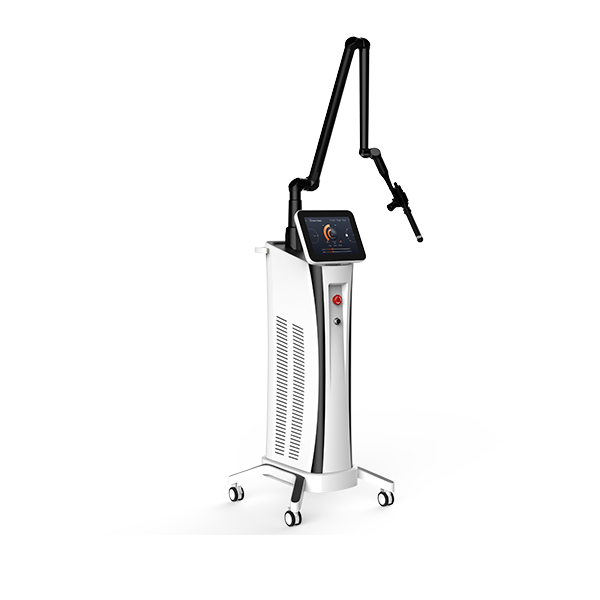

Technical Specifications
| Specification | Details |
| Model | LumaFraxel X |
| Laser Type | CO2 Laser |
| Wavelength | 10600nm |
| Output Power | 1–60W |
| Scan Range | Maximum 20mm × 20mm |
| Spot Size | 100μm–2000μm |
| Scan Mode | Sequential, Center, Random |
| Treatment Modes | Fractional Mode, Pulse Mode, Gynecological Mode |
| Scan Shapes | Circle, Ellipse, Triangle, Rectangle, Square, Hexagon, Straight Line, Custom |
| Transmission | 7-Joint Rotational Mechanical Arm, 360° Free Rotation |
| Screen | 10.4-Inch Touch LCD Screen |
| Input Voltage | 220/110V, 50/60Hz |
Before & After
Why LionAura?
- Advanced Training Program
- FDA-Cleared
- Marketing Support
- 24-Month Warranty
Concerns You May Have
How powerful is this Fractional CO2 Laser Machine?
It offers adjustable output power from 1 to 60W, allowing practitioners to adjust the laser output according to different treatment needs.
Is it effective for skin resurfacing?
Yes. This Fractional CO2 Laser Machine is designed for professional skin resurfacing, skin rejuvenation, and skin texture improvement.
Can it be used for intimate treatments?
Yes. It features a dedicated gynecological mode for selected professional intimate-area treatments.
Is training provided?
Yes. Professional equipment training is provided to help practitioners learn how to operate the machine and perform treatments properly.
Is a Fractional CO2 Laser Machine safe to use?
Yes. The machine is designed according to international safety requirements for professional aesthetic equipment and has CE and FDA certifications.
How do I maintain the machine?
It requires minimal routine maintenance. Regular cleaning of the treatment and scanning components and checking the power connection are recommended.
What after-sales support is provided?
The machine comes with a 24-month warranty, fast spare-parts replacement, and lifetime technical support.
How much does a Fractional CO2 Laser Machine cost?
The price of a Fractional CO2 Laser Machine depends on the laser source, power, treatment functions, configuration, and order quantity. Contact us for the latest wholesale price and a customized quotation.
