True 4-Channel Independent Control (4-Way, 4-Control)
1. Smart Pre-Heating Mode (Contrast Cryolipolysis)
Standard cryo machines cool the tissue immediately, which can cause skin shock and bruising. Our advanced system introduces a “Pre-heating Phase”:
- The Process: The applicator heats the treatment area to 43°C for 3 minutes before the cooling phase begins.
- The Benefit: This accelerates local blood circulation and increases the permeability of cell membranes. This thermal contrast not only makes the fat cells more susceptible to crystallization but also significantly reduces post-treatment bruising and improves patient comfort during the vacuum suction.

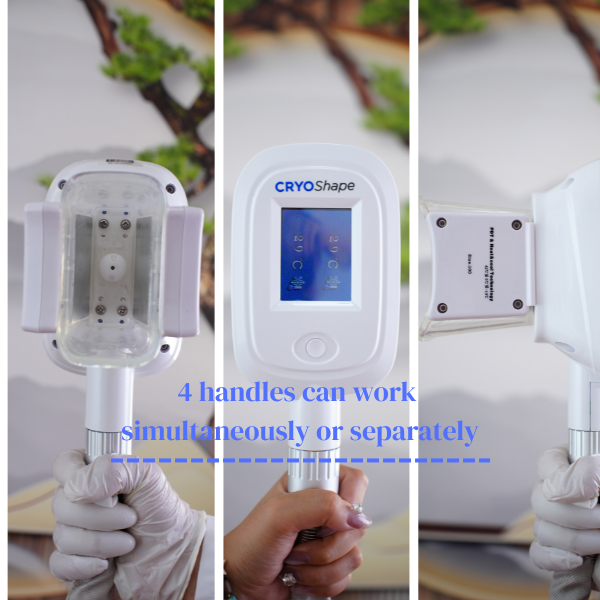

2. True 4-Channel Independent Control (4-Way, 4-Control)
Many competitors claim “4 handles” but use a single pump shared across all applicators, leading to weak suction when multiple handles are used.
- Our Solution: We utilize a 4-Way, 4-Control System. Each of the four handles operates with its own independent circuit.
- Hardware: Equipped with 4 dedicated Taiwan Air Pumps and 2 Water Pumps.
- Clinical Advantage: You can treat 4 different areas (or 2 patients) simultaneously with absolutely no loss of suction power. The settings for each handle can be adjusted independently to suit different patient BMIs.

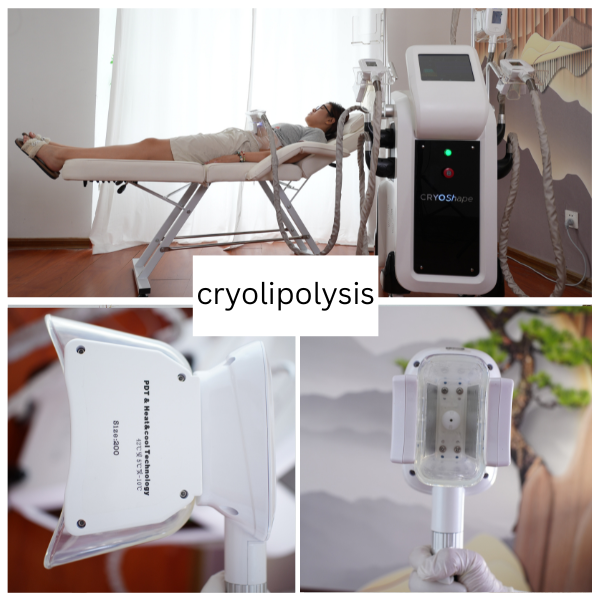

3. 360° Surround Cooling Technology
Upgraded from traditional dual-plate cooling, our 360° applicators provide 100% cooling coverage within the cup. This increases the effective treatment area by approximately 100%, ensuring no “blind spots” and more uniform fat reduction.
Premium Component Configuration (Build Quality)
We understand that for distributors and clinics, machine stability is paramount. This device is built with top-tier imported components to ensure a lifespan of 5+ years.
Power Supply (Taiwan Mean Well): The heart of the machine. Known as the “Gold Standard” in industrial power, MW ensures the device can run continuously for 12 hours without power instability.
German Proportional Valve: Controls the vacuum pressure with extreme precision. It ensures the suction is strong enough to hold the tissue but smooth enough to prevent skin injury.
US Solenoid Valve: Ensures rapid and reliable switching of air and water flow, preventing leakage and pressure drops.
Dual Water Circulation: A massive 14L water tank paired with active cooling ensures the device maintains sub-zero temperatures even in warm clinic environments.
Technical Specifications
| Feature | Specification |

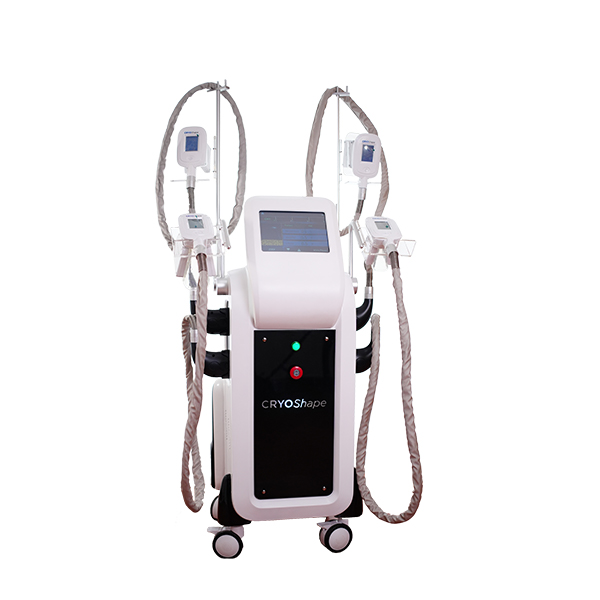

| Model Type | Professional 4-Handle Cryolipolysis System |
| Display | 12-inch True Color Touch Screen |
| Handle Screens | Yes, each handle has a synchronization screen |
| Number of Handles | 4 Simultaneous Handles + 1 Double Chin Handle (Optional) |
| Temperature Range | Cooling: -13°C to 10°C Heating: 37°C to 45°C (Pre-heating) |
| Vacuum Pressure | 0 – 100 Kpa (Adjustable via German Valve) |
| Cooling System | Water + Air + Semiconductor + Semiconductor Radiator |
| Power Output | 1000W High Power |
| Pump Configuration | 4 x Air Pumps (Taiwan) + 2 x Water Pumps |
| Key Components | Taiwan MW Power, US Solenoid, German Proportional Valve |
| Water Tank Volume | 14 Liters |
| Voltage | AC 110V/220V, 50/60Hz |
Frequently Asked Questions
Q: Can I use all 4 handles at the same time on different patients?
A: Yes. Because the machine uses a “4-Way 4-Control” system with independent pumps, you can treat two patients simultaneously (using 2 handles each) with different suction and temperature settings for every single handle.
Q: What is the benefit of the pre-heating function?
A: The 3-minute heating phase at roughly 43°C improves blood circulation and softens the connective tissue. This makes the vacuum suction more comfortable and helps separate fat cells for more effective freezing, while minimizing the risk of bruising.
Q: Is the result permanent?
A: Yes. The number of fat cells in an adult body is typically fixed. Cryolipolysis physically destroys and removes these cells. Once metabolized, they do not regenerate, providing long-lasting results as long as the patient maintains a healthy weight.
Q: How long can the machine run continuously?
A: Thanks to the Taiwan MW power supply and the advanced cooling system with a 14L tank, this machine is rated for 12 hours of continuous operation, making it perfect for busy clinics.
